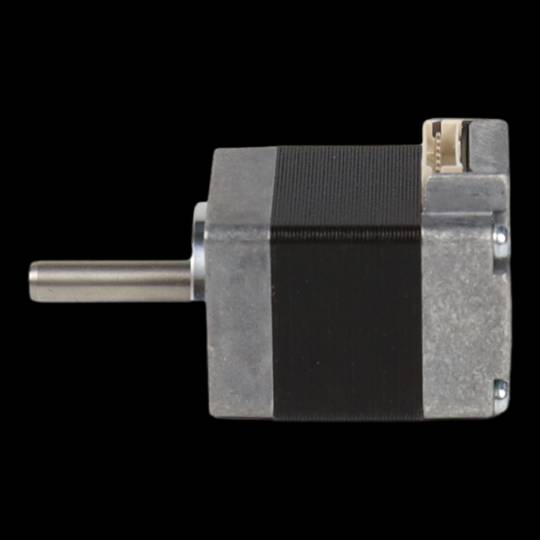

F07-20D1-2401 20mm Single axis Two-phase Step motor

₹ 8364/pcs

Quantity

14 day delivery

Bulk Pricing

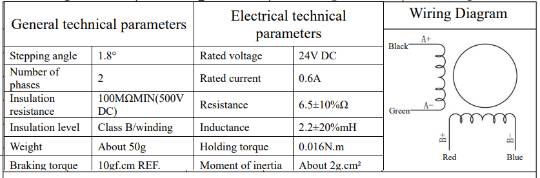

20mm \| Model	Flange size mm	Motor length mm	Step angle deg	Rated current A	Maintain torque n.m	Rotor inertia g.cm²	Shaft diameter mm	Weight Kg
F07-20D1-2401	20.3	28	1.8	0.6	18	2	4	0.05
