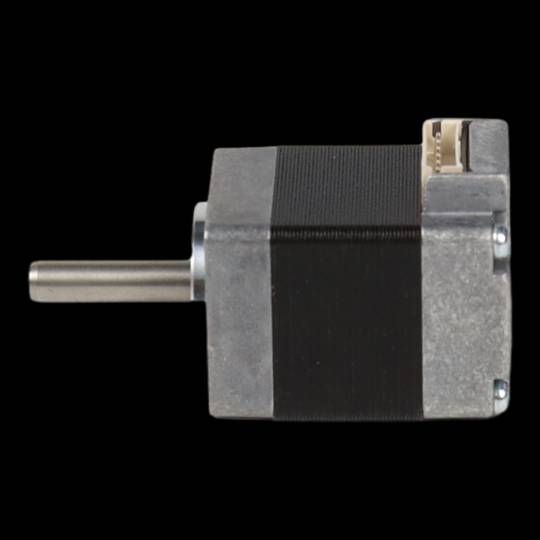

F07-20D1-4401 20mm Single axis Two-phase step motor

₹ 6888/pcs

Quantity

14 day delivery

Bulk Pricing

20mm \| Model	Flange size mm	Motor length mm	Step angle deg	Rated current A	Maintain torque n.m	Rotor inertia g.cm²	Shaft diameter mm	Weight Kg
F07-20D1-4401	20.3	38	1.8	0.4	28	3	4	0.07
