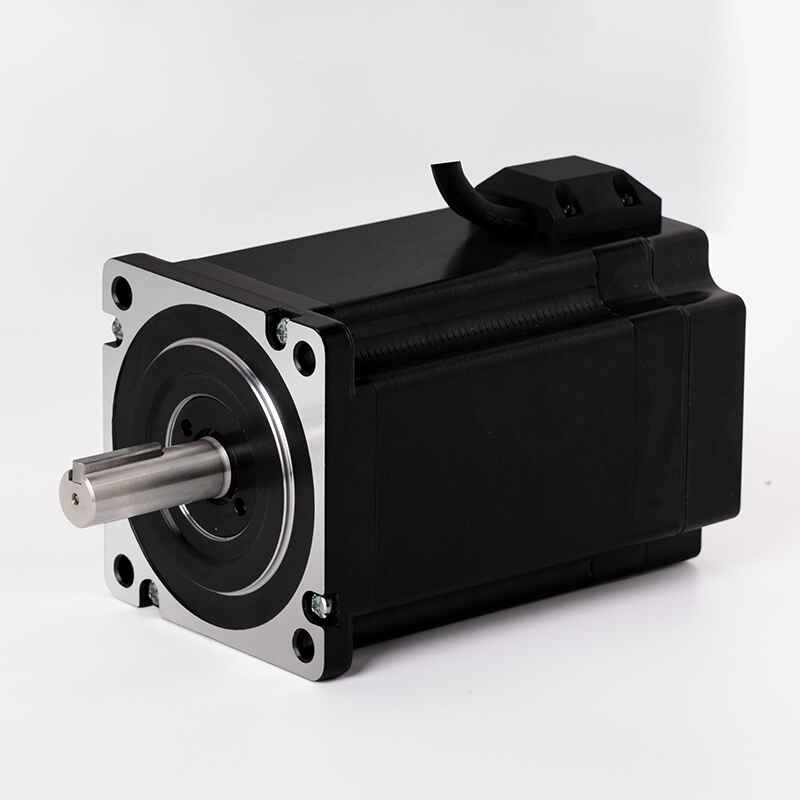

High-Precision 86K112-E1000 Motor with ±0.09° Angle Error and 20%-90% RH Humidity Range

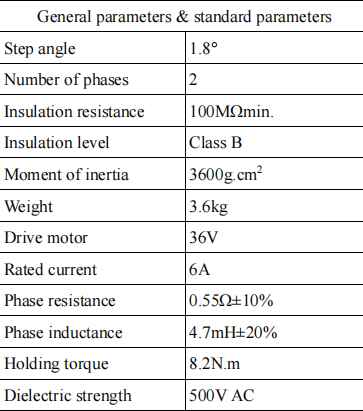

| General parameters &standard parameters | |
| Step angle | 1.8° |
| Number of phases | 2 |
| Insulation resistance | 100MOmin. |
| Insulation level | Class B |
| Moment ofinertia | 3600g.cm² |
| Weight | 3.6kg |
| Drive motor | 36V |
| Rated current | 6A |
| Phase resistance | 0.55Q±10% |
| Phase inductance | 4.7mH±20% |
| Holding torque | 8.2N.m |
| Dielectric strength | 500VAC |
