Filium Motion Control Product Line Summary
Filium Motion Control offers a wide range of motion control products, including stepper motor drive systems, servo motor drive systems, brush motor drive systems, precision fine tuning tables, alignment platforms, linear motor modules, reducers, hollow rotating platforms, and more. These advanced control solutions are extensively used across various industries such as 3C electronics, medical devices, semiconductor manufacturing, photovoltaic technology, lithium battery production, and more.

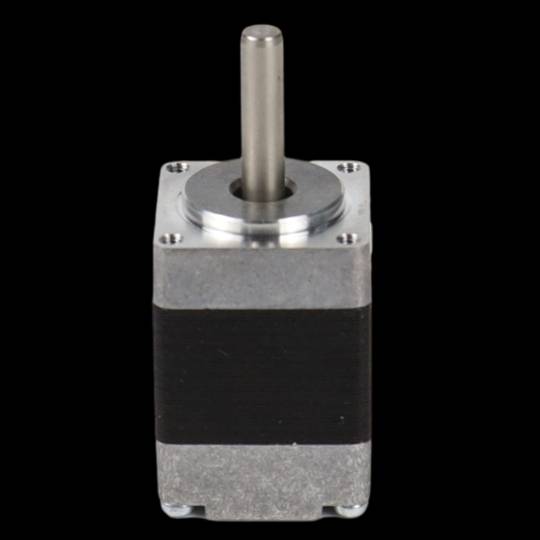

Stepper motor and driver
Filium offers a comprehensive range of stepper motors, including hybrid stepper motors, brake stepper motors, integrated deceleration stepper motors, hollow shaft stepper motors, and both DC and AC options. Known for their extended range, rapid response, low vibration, high precision, and exceptional durability, these stepper motors are ideal for use across diverse industries such as 3C electronics, semiconductor equipment, CNC machinery, medical devices, laser engraving, textile printing, packaging equipment, and more.
Micro motion stage
Including linear, rotate, swing and lift, the track mode uses linear ball Gothic arc grooves on the upper and lower rail surfaces of the body, each composed of double solitary grooves. The steel ball moving in a single groove is a two point contact structure, and the double arc grooves have a total of four contact points, so it constitutes a solid sliding rail structure. Transmission mode ball screw, through the ball in the nut and screw rolling contact, its positioning accuracy and high life, with high speed forward and reverse transmission and change transmission characteristics
Reducer
High precision planetary reducer is divided into straight planetary reducer and helical planetary reducer. High precision, strong rigidity, high speed ratio, small size, compact structure, flange size covers 60mm-242mm, in the sale of various series of planetary reducer into the force flange flexible match, suitable for various brands of servo motor, stepper motor, output end connection and easy installation.
Alignment stage
The Alignment stage is called XXY stage, which is widely used in the visual counterpoint system. Our products cover 150mm-550mm, larger size can be customized. With ultra thin, lightweight platform and Mini modular structure design, achieve a thin and light mechanism without center seat, through special cross roller bearings applied repressure, high rigidity, high precision performance, can be used as an optical inspection device or conduction tester.
Hollow rotating stage
With a unique hollow shaft structure for line, tube and other connecting parts hidden installation, high rigidity and high deceleration ratio make it with high load capacity, the combination of speed and accuracy can replace the CAM divider and DD motor. The size of the hollow shaft rotating platform flange sold by the company is mainly 60mm, 85mm, 130mm, 200mm, and the large diameter center hole is more convenient to thread, which can be installed, side installed and inverted, and easily match the stepping motor or servo of various manufacturers
Linear motor
Linear motor is a kind of direct drive motor, can effectively replace the lead screw module of advanced products, can help customers improve speed, accuracy requirements, and thereby improve equipment production capacity. In addition, you can also perform the application of hyperreactions on a module, so that the designer is more flexible for the design space, especially in the long travel, heavy load and highspeed applications is the best solution. Our linear products include guide rail, embedded, rod motor, voice coil motorize blade shaft, integrated XYR and XXY stand, as well as nonstandard customized marble gantry, all have a complete set of solutions corresponding to various needs of customers, with a more reasonable matching and price to provide customers with the best application products
Brushless DC Motor
The brushless motor continuously compares the set speed with the speed feedback signal from the motor to adjust the voltage applied to the motor. The speed control range of brushless motor is wider than that of AC speed regulating motor and inverter. Because there is no torque limit at low speeds like AC speed regulating motors, brushless motors are suitable for uses that require a certain torque from low speed to high speed.
